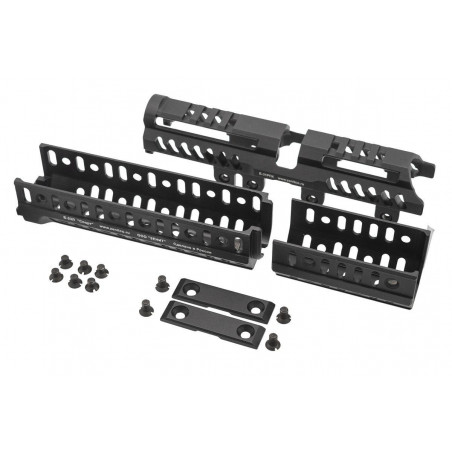

Zenitco Sport-8 Saiga-308 Handguard

Zenitco Sport-8 Saiga-308 Handguard photo
$714.95
Availability: Out of stock
Brand: Zenitco
Material: Aluminum D16T
Mount Type: Weaver/Picatinny
Choose options:
There are no products with specified properties combination. Try to choose other properties.

Designed for Saiga-308 v.46 (shorter barrel).
«Sport-8» kit is designed for «Saiga-308» (version 46, version 61). Has Basis rails on five sides. Basis rail allows to attach additional equipment, compatible with Basis, directly on handguard (Picatinny rails, slingmounts, hand stoppers, grips, switches, rail covers, wire holders).

Advantages:

  • strength;
  • improves the cooling of the barrel in the place between the receiver and the gas tube;
  • allows to mount additional accessories.
  • Characteristics:
  • Material: aluminum alloy D16T
  • Product length: 250 mm
  • Ambient temperature during operation: from -50 to +50 0С.



Screws:
M5x7 6 pcs.
M5x9 4 pc.

Manual 1 pc.

To install «Sport-8» do the following:

  • Perform an incomplete disassembly of the rifle, take off the regular handguard and the regular gas tube cover.
  • Install B-23Lrail instead of the regular handguard. Install regular handguard retainer on B-23L. Hammer it until it fits (hit the handguard retainer through a spacer). Close the lever on handguard retainer.
  • Install B-31RPK rail.
  • Install DL-3 rail. Screw in 6 M5x7 screws. Left two openings on the right side unscrewed, you will install a side bar here.
  • Install side bars. One on the bottom, one on the right. Use longer M5x9 screws.


Warranty period – 60 months.
