Zenitco Sport-3 Saiga-9 Handguard

Sport-3 kit is installed in place of the regular handguard of Saiga-9 or TR9 Paradox.

Has Basis rails on three sides. Basis rail is designed for lightening the handguard and installation of additional accessories directly to the handguard: side Picatinny rails (B-2, B-2L, B-2U, B-2M); slingmounts (A-1L, A-2L); RL-1 hand stoppers; grips (RK-0L, RK-1L, RK-2L, RK-4L, KR-6L); NPN-2 Basis rail covers.

All products of the kit are milled with a coating of black or desert color.

Advantages during operation:

• strength
• improves the cooling of the gun barrel in the area from the receiver to the upper handguard
• creates the possibility of mounting additional equipment
• minimum weight and size characteristics
• Material: D16T aluminum alloy

Operating ambient temperature range: -50 to +50°C

Weight: 275 ± 10 g
Warranty period of storage and operation with the date of commissioning: 60 months.

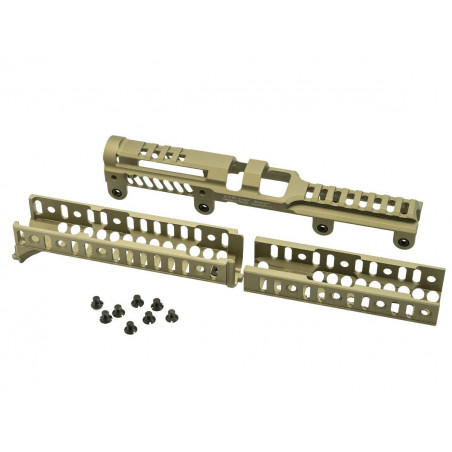

In the kit:

1. B-31LN upper handguard rail - 1 pc.
2. B-21L handguard rail - 1 pc.
3. DL-2 additional attachment rail - 1 pc.
4. Screws - 8 pcs.
5. Manuals (B-31LN, B-21L, DL-2, Sport-3 kit) - 4 pcs.

To install the Sport-3 kit on the weapon you need:
1. To make incomplete disassembly of the weapon and to remove a regular handguard and a regular upper handguard.
2.  Install ''B-21L handguard" rail. Place it in the position of the regular handguard. Cover by handguard retainer. Hammer the handguard into the rifle. Do not hit the handguard directly, hit a handguard retainer by a hammer through a spacer.
3. Install "B-31LN upper handguard" rail.
4. Install ''DL-2 additional attachment'' rail.

Detailed information about each rail: advantages during operation, technical characteristics, installation instructions can be found in the manuals of each product.
