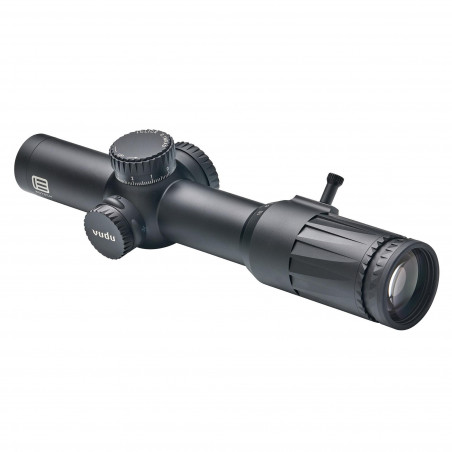

EOTech Vudu 1-10x28 FFP
EOTECH’s Vudu 1-10x28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.
First Focal Plane
- Overall Length: 10.63" (270 mm)
- Weight: 21.3 oz (603 g)
- Magnification: 1-10X
- Tube Diameter: 34 mm
- Objective Diameter: 28 mm
- Power Source: CR2032
Eye Relief
1X: 3.27-3.90" (83-99 mm)
10X: 3.35-3.62" (85-92 mm)
Field-of-View @ 100 Yards
1X: 116.6 ft (35.5 m)
10X: 11.7 ft (3.6 m)
Vudu SR-4 MOA Reticle
The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls.
Adjustment Graduation Per Click: 0.25 MOA
Adjustment Graduation Per Rotation: 40 MOA
Total Elevation Travel: 100 MOA
Total Windage Travel: 80 MOA
Vudu SR-5 MRAD Reticle
The SR-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision 0.25 MRAD center aiming dot and the secondary windage and elevation features allow for precise holds on those longer range shots.
Adjustment Graduation Per Click: 0.1 MRAD
Adjustment Graduation Per Rotation: 15 MRAD
Total Elevation Travel: 29 MRAD
Total Windage Travel: 23 MRAD
Vudu LE-5 MRAD Reticle
The LE-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision cross-hair and the secondary windage and elevation features allow for precise holds on those longer range shots.
Adjustment Graduation Per Click: 0.1 MRAD
Adjustment Graduation Per Rotation: 15 MRAD
Total Elevation Travel: 29 MRAD
Total Windage Travel: 23 MRAD
